1. Introduction
This overturning machine is mainly used for
overturning the T-shaped or H-shaped beam 90 degrees so as to feed to next
stage for welding. It’s hydraulic type overturning. Three oil cylinders drive
3pieces of L-shaped rack turn 90 degree synchronously.
It also can be used in other applications.
We also welcome special requirements.
2. Main Parameters
|
Model
|
FZ90
|
|
Suitable H-beam flange width (mm)
|
200—800
|
|
Suitable H-beam web height (mm)
|
200—2000mm
|
|
Suitable work-piece weight (t)
|
≤20T
|
|
Overturning oil cylinder diameter (mm)
|
φ125
|
|
Max pressure of hydraulic system (MPa)
|
14
|
|
Above are our standard models and parameters, and it can be
designed and manufactured on request.
|
*We reserve the right to alter
specifications without prior notice.

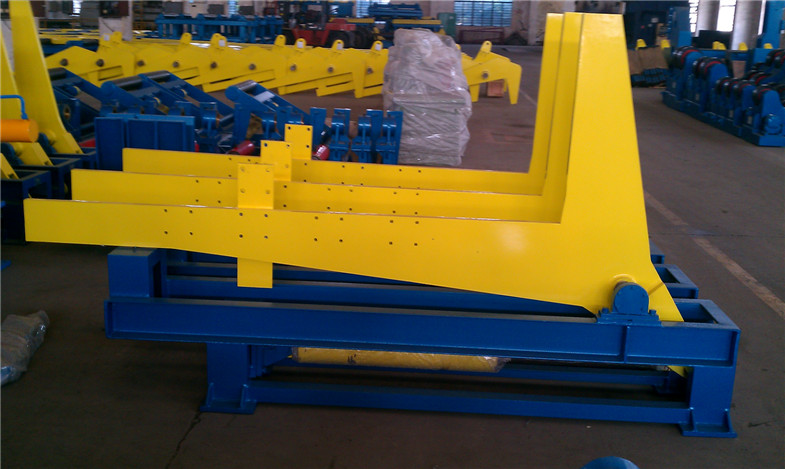

3. Reference photo
|
